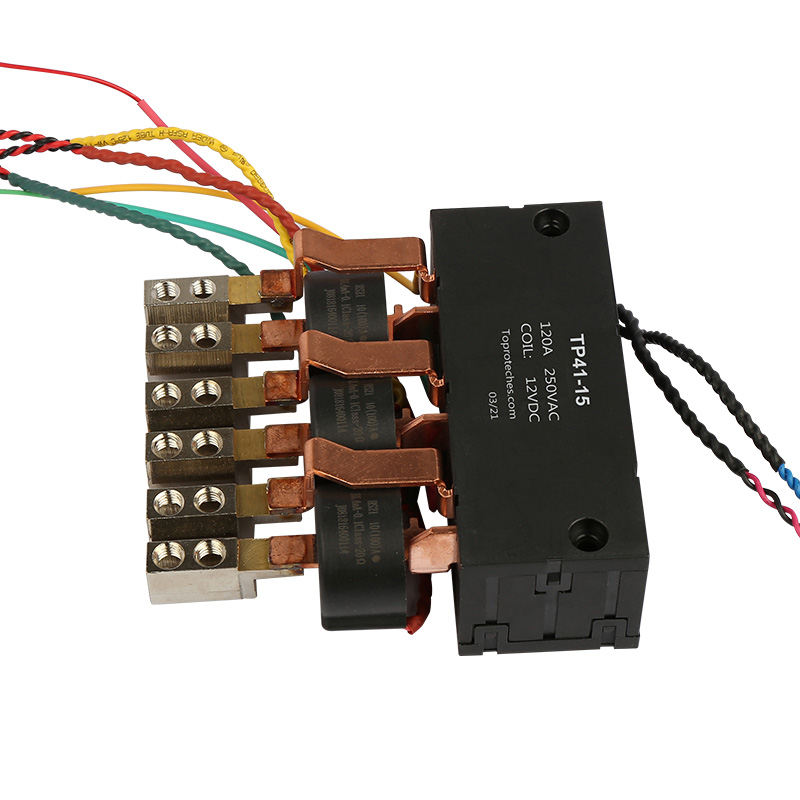

Three phase 120A switching capability;
Multi-layer blades, low temperature rise;
Low power consumption 2.5W;
Integrated CT, relays, and terminals, easily assembled;
Environmental protection (comply with ROSH) ;
Outline dimension: 98.4mm×40.3mm×37.8mm.
三相120A电流切换能力；
多层电流片设计，降低温升；
低功耗：单线圈2.5W;双线圈5W;
一体式设计，集继电器，互感器和端子于一体，安装方便；
产品设计新颖，符合ROSH环保标准;
外形尺寸：98.4mm×40.3mm×37.8mm.
|
Rated Coil voltage 额定线圈电压 |
6VDC, 9VDC, 12VDC, 24VDC, 48VDC |
|
Single coil power 单线圈功耗 |
3W |
|
Double coil power 双线圈功耗 |
6W |
|
Pulse width 脉冲宽度 |
50ms Max |
|
Pulse time 脉冲时间 |
<50 ms (At nominal voltage)在额定电压下 |
|
AgSnO2 |
|
|
Contact arrangement 触点形式 |
3A(B) |
|
Contact resistance 接触电阻 |
1.0mΩ Max（Test under 1A/6VDC） |
|
Max switching current 最大切换电流 |
120A |
|
Max switching voltage 最大切换电压 |
253VAC |
|
Max switching power 最大切换功耗 |
30000VA |
|
Mechanical life 机械寿命 |
1×105OPS次 |
|
Electrical life 电气寿命 |
1×104OPS次 |
|
额定电压 Nominal voltage (VDC) |
最大动作电压 Max operating voltage (VDC) |
线圈电阻 Coil resistance(1±10%) (Ω) |
|
单线圈 Single winding |
||
|
6 |
4.8 |
12 |
|
9 |
7.2 |
27 |
|
12 |
9.6 |
48 |
|
24 |
19.2 |
192 |
|
48 |
38.4 |
768 |
|
双线圈 Double winding |
||
|
6 |
4.8 |
6+6 |
|
9 |
7.2 |
13.5+13.5 |
|
12 |
9.6 |
24+24 |
|
24 |
19.2 |
96+96 |
|
48 |
38.4 |
384+384 |
|
Insulation resistance 绝缘电阻 |
1000MΩ |
|
Dielectric strength between coil 线圈间耐压 |
4000V 1 minute |
|
Dielectric strength between contact 触点间耐压 |
2000V 1 minute |
|
Creepage distance 爬电距离 |
8mm |
|
Shock resistance 冲击能力 |
147m/S2 |
|
Vibration resistance 振动能力 |
10-55HZ amplitude 1.5mm 双振幅 |
|
Ambient temperature 温度范围 |
-40-+85℃ |
|
Weight 重量 |
Approx.400g大约400g |
|
Construction 封装形式 |
Dust protection防尘 |
